Introduction

Maintaining controlled environmental conditions is a fundamental requirement in pharmaceutical and biopharmaceutical manufacturing. Heating, Ventilation, and Air Conditioning (HVAC) systems play a critical role in ensuring product quality, patient safety, and regulatory compliance by controlling airflow, temperature, humidity, and particulate contamination.

Among the various HVAC qualification activities, the Smoke Visualization Study—commonly known as an Airflow Visualization Study—is one of the most valuable tools for demonstrating airflow patterns within cleanrooms and critical processing areas. This study provides visual evidence that clean air effectively protects products, personnel, and processes from contamination.

This article discusses the purpose, regulatory expectations, methodology, acceptance criteria, and best practices for conducting smoke visualization studies in pharmaceutical and biopharmaceutical facilities.

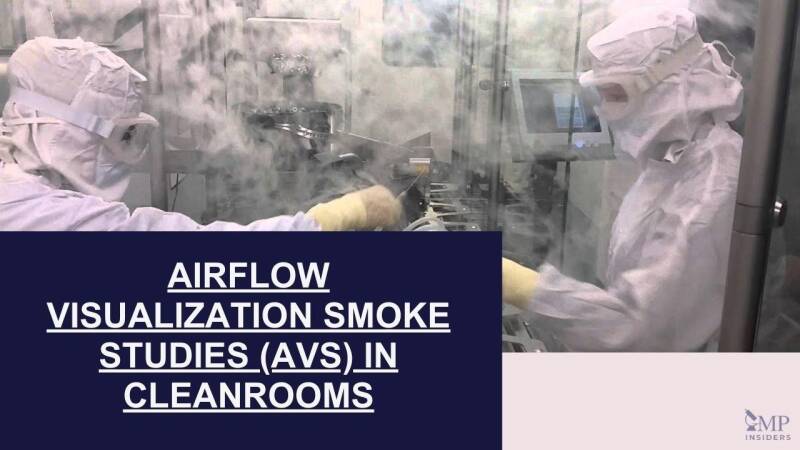

What is a Smoke Visualization Study?

A Smoke Visualization Study is a qualitative test performed to visualize airflow patterns within cleanrooms, aseptic processing areas, and controlled environments. The study uses a visible, non-toxic smoke or fog generated by specialized equipment to demonstrate the movement of air.

The primary objective is to confirm that airflow moves in the intended direction and does not create turbulence, stagnation zones, or contamination risks that could compromise product quality.

The study is usually recorded on video and becomes part of the HVAC qualification and contamination control documentation.

Importance of Smoke Visualization in Pharmaceutical Facilities

Smoke studies provide direct evidence of airflow behavior that cannot be fully evaluated through particle counting or airflow measurements alone.

Key objectives include:

• Verification of unidirectional airflow (UDAF) performance
• Identification of airflow disturbances and turbulence
• Assessment of airflow recovery after personnel movement
• Evaluation of equipment impact on airflow patterns
• Demonstration of contamination control effectiveness
• Support for cleanroom qualification and validation activities
• Compliance with regulatory requirements

In aseptic manufacturing environments, smoke studies are particularly important because they demonstrate whether critical zones remain protected during routine operations.

Regulatory Expectations

Several regulatory authorities and industry guidelines emphasize the importance of airflow visualization studies.

EU GMP Annex 1

The revised EU GMP Annex 1 requires airflow visualization studies as part of contamination control strategies and aseptic process qualification. The guideline recommends that studies should:

• Demonstrate airflow patterns under both at-rest and operational conditions
• Be documented through video recording
• Include representative interventions and activities
• Support contamination control assessments

FDA Guidance

The US FDA's guidance on sterile drug manufacturing recommends airflow visualization studies to verify that critical areas receive adequate protection from contamination during manufacturing operations.

ISO 14644

ISO 14644 standards support airflow visualization as a useful tool for understanding airflow performance and identifying potential contamination risks within cleanrooms.

Applications of Smoke Visualization Studies

Smoke studies are commonly performed in the following areas:

1. Cleanroom Qualification

To verify airflow direction and effectiveness in classified cleanrooms such as:

• ISO Class 5
• ISO Class 7
• ISO Class 8
• Grade A
• Grade B
• Grade C
• Grade D

2. Laminar Airflow Units

To confirm unidirectional airflow and absence of turbulence.

3. Biological Safety Cabinets

To evaluate airflow containment and personnel protection.

4. Isolators and RABS

To verify airflow integrity and contamination control.

5. Filling and Aseptic Processing Areas

To demonstrate protection of exposed sterile products during operations.

Types of Smoke Studies

At-Rest Smoke Study

Conducted when:

• HVAC system is operating normally
• Equipment is installed
• No personnel are present
• No manufacturing activity is ongoing

Purpose:

• Verify baseline airflow patterns
• Establish initial qualification evidence

Operational Smoke Study

Conducted under normal operating conditions with:

• Personnel present
• Equipment running
• Routine interventions performed

Purpose:

• Demonstrate airflow protection during actual manufacturing conditions
• Evaluate the impact of operator movements and equipment operation

Operational studies are generally considered more critical because they represent real production scenarios.

Smoke Study Equipment

Common equipment used includes:

Smoke Generator

Produces clean, visible, non-toxic smoke suitable for cleanroom environments.

Examples:

• Water-based fog generators
• Glycol-based smoke generators
• Nitrogen-generated smoke systems

Video Recording System

High-definition video recording is recommended to capture:

• Airflow direction
• Airflow velocity indications
• Personnel interventions
• Recovery patterns

Environmental Monitoring Instruments

Additional instruments may include:

• Anemometers
• Differential pressure gauges
• Particle counters
• Temperature and humidity monitors

Methodology for Conducting Smoke Visualization Studies

Step 1: Develop a Protocol

The protocol should define:

• Objective
• Scope
• Test locations
• Acceptance criteria
• Equipment requirements
• Documentation requirements

Step 2: Identify Critical Locations

Typical locations include:

• Filling needles
• Open containers
• Stoppering stations
• Material transfer points
• Doorways
• Equipment interfaces

Step 3: Generate Smoke

Introduce smoke carefully into the airflow stream without disturbing airflow patterns.

Step 4: Observe Airflow

Evaluate:

• Direction of airflow
• Uniformity of airflow
• Presence of turbulence
• Dead zones
• Airflow recovery

Step 5: Record Results

Video documentation should clearly demonstrate:

• Airflow behavior
• Test conditions
• Personnel interventions
• Observations and conclusions

Step 6: Review and Approval

Quality Assurance, Engineering, Validation, and Production departments should review and approve the study results.

Acceptance Criteria

Acceptance criteria should be predefined and risk-based.

Typical criteria include:

For Unidirectional Airflow Areas

• Smooth airflow movement
• No reflux or reverse airflow
• No significant turbulence
• Continuous protection of critical zones

For Cleanrooms

• Air movement follows design intent
• No stagnant airflow regions
• Adequate airflow recovery after interventions
• No contamination risk to critical operations

Common Observations During Smoke Studies

Acceptable Conditions

• Uniform downward airflow
• Consistent airflow velocity
• Rapid recovery after interventions
• Protection of exposed products

Unacceptable Conditions

• Airflow turbulence
• Air recirculation
• Stagnant air pockets
• Reverse airflow
• Airflow blockage by equipment
• Excessive operator interference

Any unacceptable observation should trigger an investigation and corrective action.

Challenges in Smoke Visualization Studies

Some common challenges include:

Excessive Smoke Generation

Too much smoke can create misleading airflow patterns.

Poor Camera Positioning

Inadequate video angles may fail to capture critical airflow behavior.

Non-Representative Testing

Studies conducted without realistic interventions may not accurately represent actual manufacturing conditions.

Equipment Modifications

New equipment or layout changes may significantly alter airflow patterns and require requalification.

Best Practices

To ensure effective smoke visualization studies:

• Develop detailed protocols
• Use qualified smoke generation equipment
• Perform studies under worst-case conditions
• Include routine and non-routine interventions
• Record high-quality videos
• Train personnel involved in testing
• Repeat studies after significant facility changes
• Integrate findings into the Contamination Control Strategy (CCS)

Relationship Between Smoke Studies and HVAC Qualification

Smoke visualization studies form an important component of HVAC qualification and support:

Design Qualification (DQ)

Verification that airflow design concepts are appropriate.

Installation Qualification (IQ)

Confirmation that airflow devices are installed correctly.

Operational Qualification (OQ)

Verification that airflow systems perform according to design specifications.

Performance Qualification (PQ)

Demonstration that airflow consistently protects products during routine operations.

The results provide visual evidence that complements airflow velocity measurements, HEPA filter integrity testing, room pressurization testing, and environmental monitoring programs.

Conclusion

Smoke Visualization Studies are an essential element of HVAC qualification and contamination control programs in pharmaceutical and biopharmaceutical facilities. They provide direct visual evidence of airflow behavior and help ensure that critical manufacturing environments remain protected from contamination risks.

With increasing regulatory focus on contamination control and aseptic processing, well-designed and properly documented smoke studies have become indispensable for demonstrating cleanroom performance and maintaining compliance with GMP requirements.

When executed correctly, smoke visualization studies not only satisfy regulatory expectations but also strengthen the overall assurance of product quality, patient safety, and process reliability.

References

1. European Commission. EudraLex Volume 4 – EU Guidelines for Good Manufacturing Practice, Annex 1: Manufacture of Sterile Medicinal Products. European Commission, 2022.

2. U.S. Food and Drug Administration (FDA). Sterile Drug Products Produced by Aseptic Processing — Current Good Manufacturing Practice Guidance for Industry. FDA, September 2004.

3. International Organization for Standardization (ISO). ISO 14644-1: Cleanrooms and Associated Controlled Environments — Part 1: Classification of Air Cleanliness by Particle Concentration. ISO.

4. International Organization for Standardization (ISO). ISO 14644-3: Cleanrooms and Associated Controlled Environments — Part 3: Test Methods. ISO.

5. International Society for Pharmaceutical Engineering (ISPE). ISPE Baseline Guide: Sterile Manufacturing Facilities. ISPE.

6. Parenteral Drug Association (PDA). Technical Report No. 13: Fundamentals of an Environmental Monitoring Program. PDA.

7. Parenteral Drug Association (PDA). Technical Report No. 22: Process Simulation Testing for Aseptically Filled Products. PDA.

8. World Health Organization (WHO). WHO Good Manufacturing Practices for Sterile Pharmaceutical Products. WHO Technical Report Series.

9. Klingenberg, S. Smoke Studies: Clearing the Mystery of Airflow Visualization. Journal of Validation Technology, Vol. 16.

10. USP General Chapter <1116>. Microbiological Control and Monitoring of Aseptic Processing Environments. United States Pharmacopeia (USP).

11. PIC/S Guide to Good Manufacturing Practice for Medicinal Products, PE 009.

12. European Pharmacopoeia (Ph. Eur.) – Parenteral Preparations and Cleanroom Environmental Control Requirements.
